Hardware

Add to the robot, never modify it.Sumar al robot, nunca modificarlo.

HAT One is a helmet that improves the G1's perception and social interaction without disturbing what the robot already does. Every hardware choice follows from that rule.HAT One es un casco que mejora la percepción y la interacción social del G1 sin perturbar lo que el robot ya hace. Cada decisión de hardware sale de esa regla.

Sensors stay clearSensores despejadosThe eyes sit at the sides, out of the robot's lidar.Los ojos van a los lados, fuera del lidar del robot.
One cableUn solo cableA single connector at the nape powers everything.Un único conector en la nuca alimenta todo.
RemovableDesmontableA solid TPU strap stretches just enough to slip it on and off.Una correa de TPU sólido cede lo justo para ponerlo y quitarlo.
Thinks elsewherePiensa fueraThe head carries sensors and displays; decisions run upstream.La cabeza lleva sensores y pantallas; las decisiones se toman fuera.

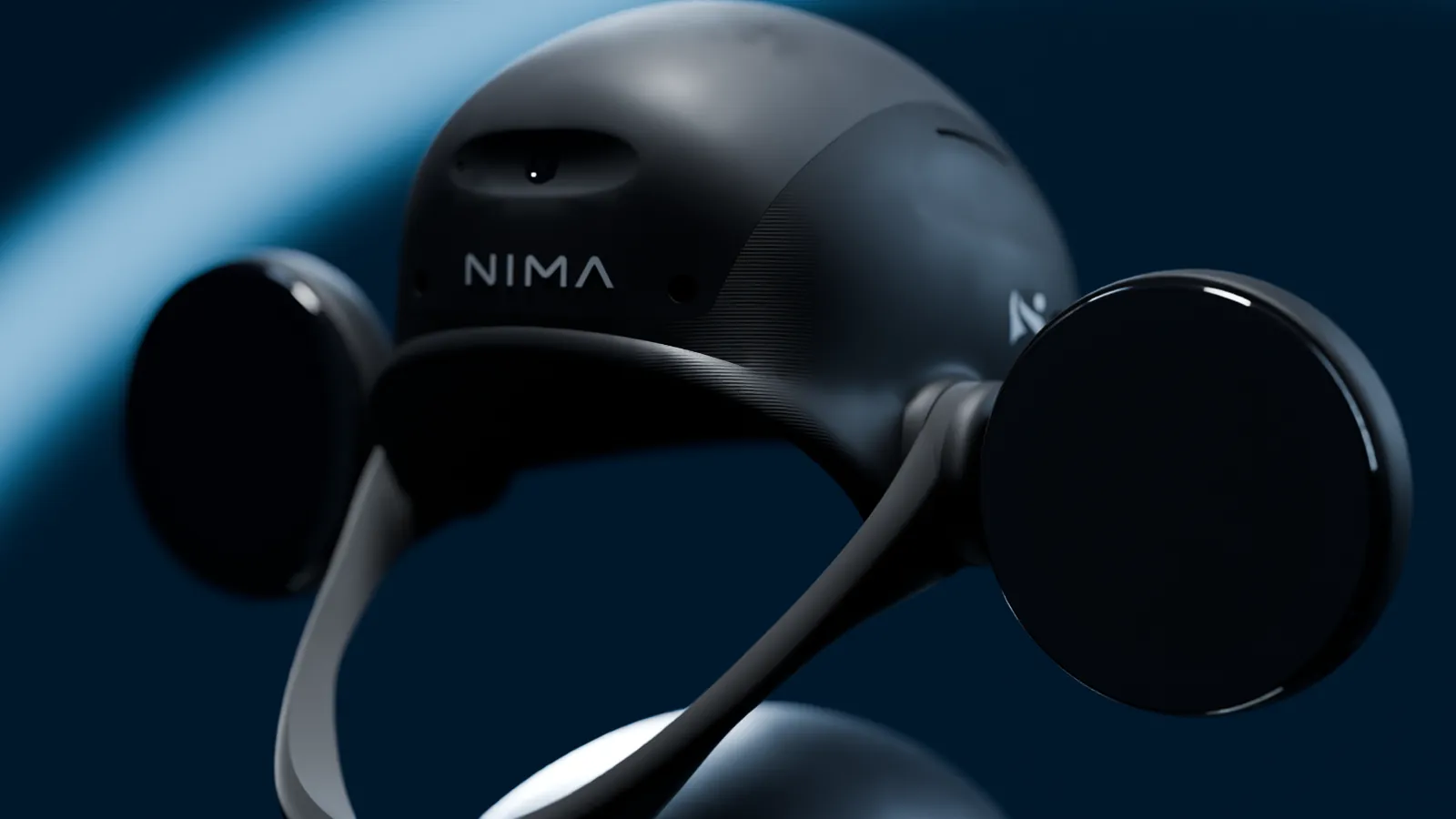

HAT One helmet, three-quarter view

What's insideQué lleva dentro

Three devices on the head, one computer off it. Select a part to explore it.Tres dispositivos en la cabeza y un ordenador fuera de ella. Selecciona una pieza para explorarla.

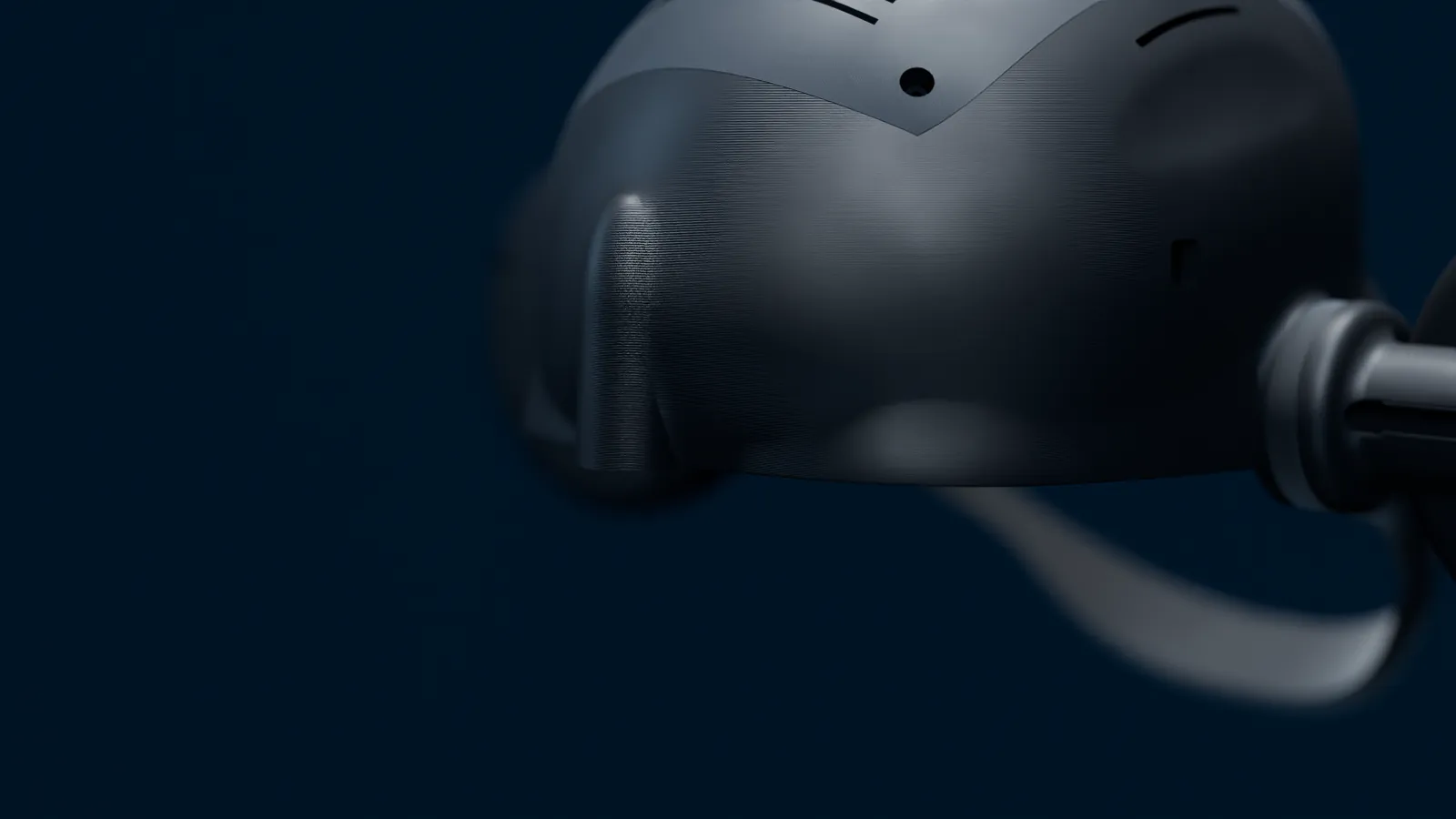

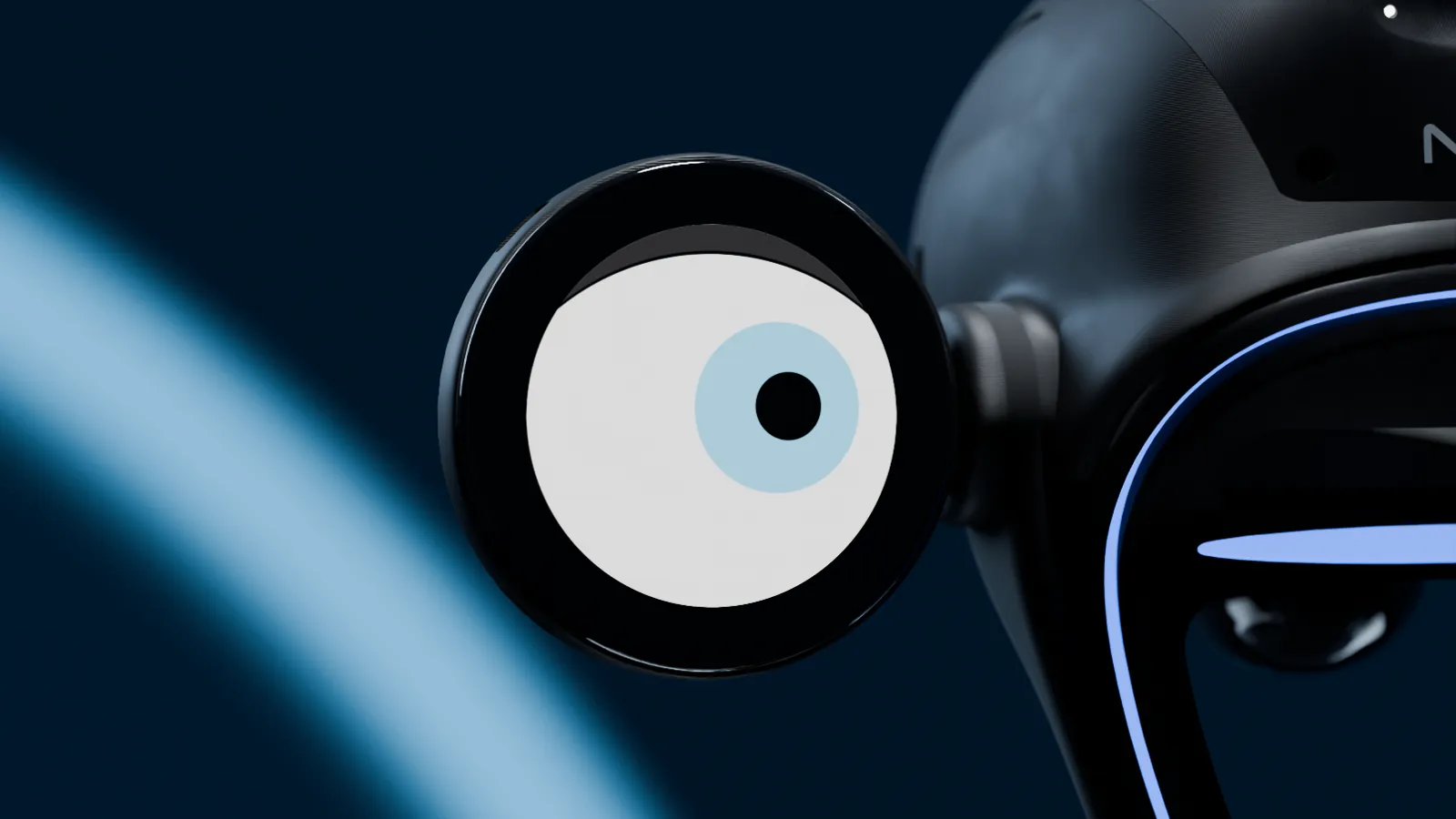

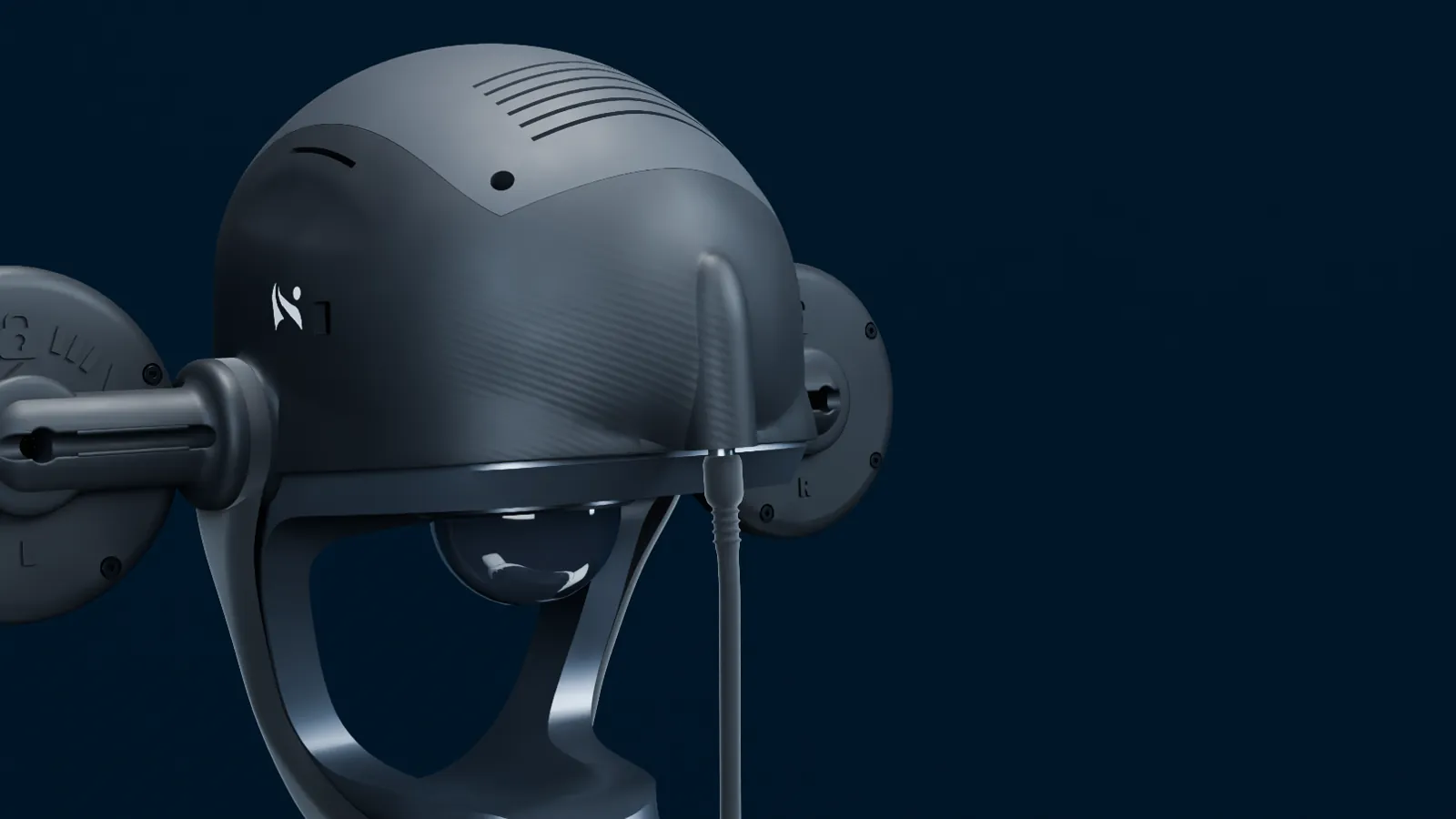

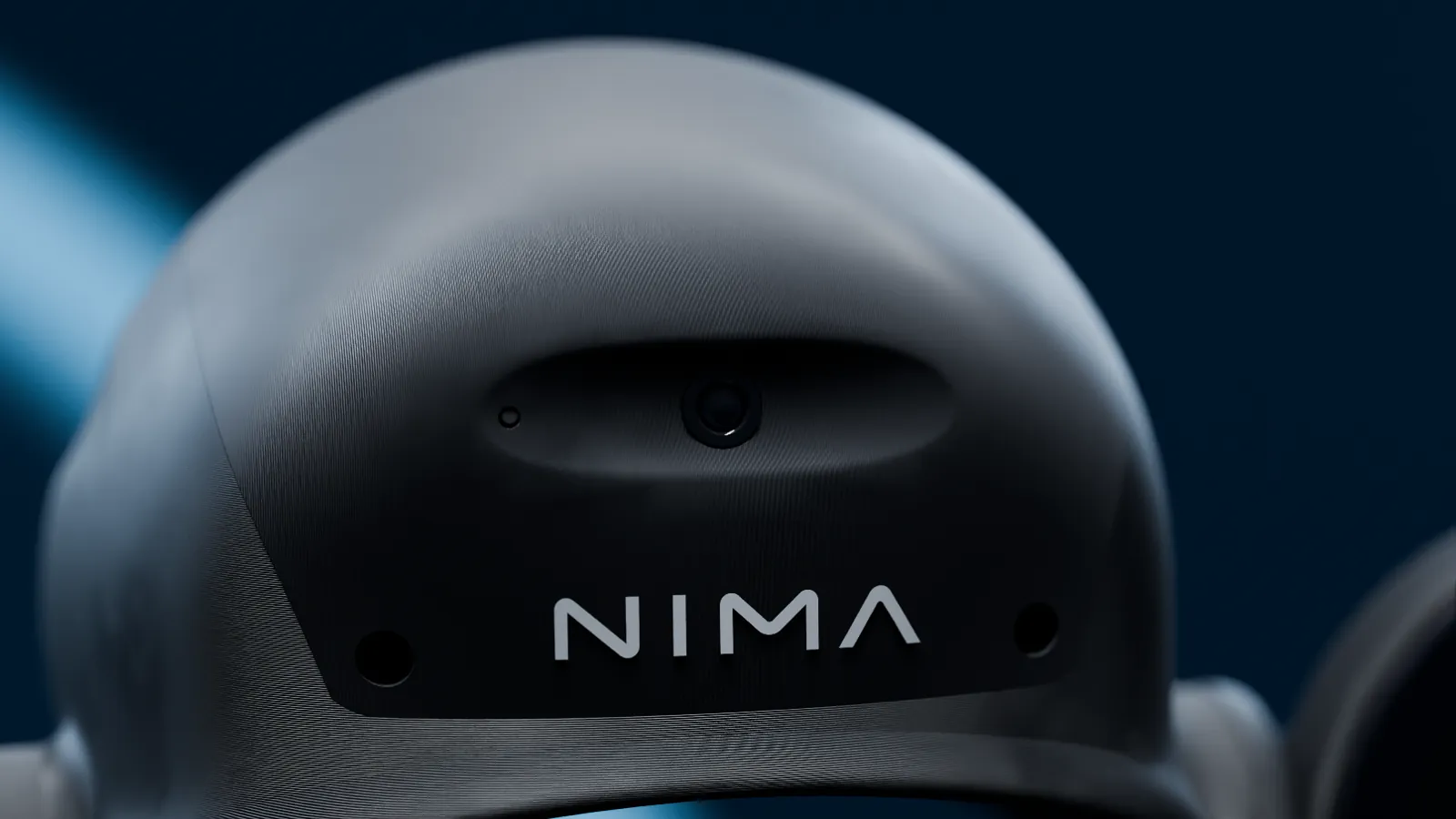

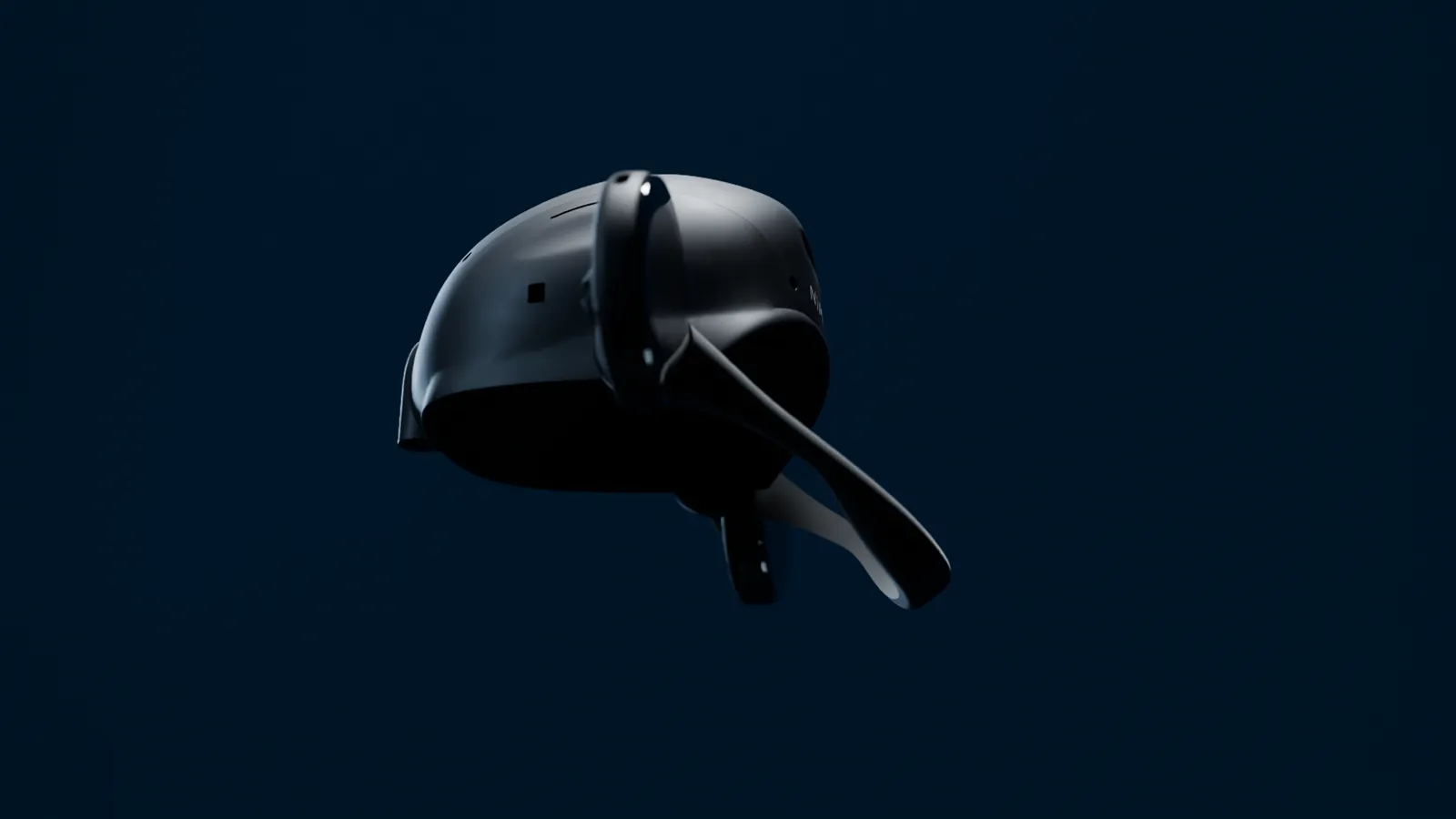

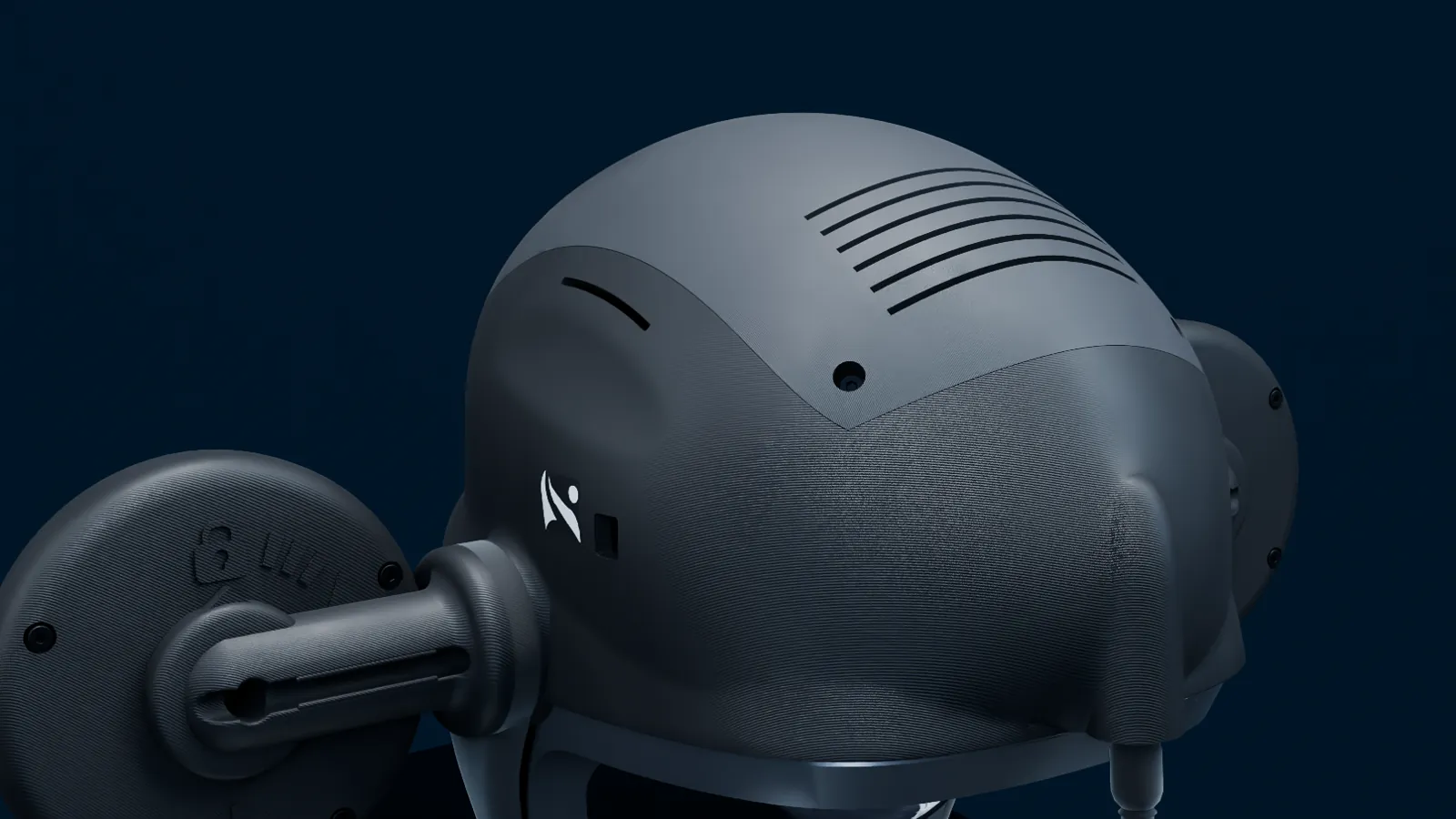

Eye display Front camera Rear three-quarter of the helmet: vents over the head computer Power cable entering the helmet at the nape Helmet side profile Render

How it connectsCómo se conecta

The devices on the head do not run ROS: they reach the ROS 2 graph over the network through a fixed data contract.Los dispositivos de la cabeza no ejecutan ROS: llegan al grafo de ROS 2 por red mediante un contrato de datos fijo.

On the headEn la cabeza
Eye displaysPantallas
Render the eye stateDibujan el estado de los ojos
Off the headFuera de la cabeza
Control computerOrdenador de control
ROS 2 · perception, attention, voicepercepción, atención, voz
On the headEn la cabeza
CameraCámara
Streams what it seesEnvía lo que ve

The control computer is "whatever machine is already on the network": today a development PC, tomorrow the robot's own onboard computer. Devices join the network through Bluetooth provisioning and remember the places they have been.El ordenador de control es «la máquina que ya esté en la red»: hoy un PC de desarrollo, mañana el ordenador de a bordo del robot. Los dispositivos se unen a la red con provisión por Bluetooth y recuerdan los sitios en los que han estado.

DetailsDetalles

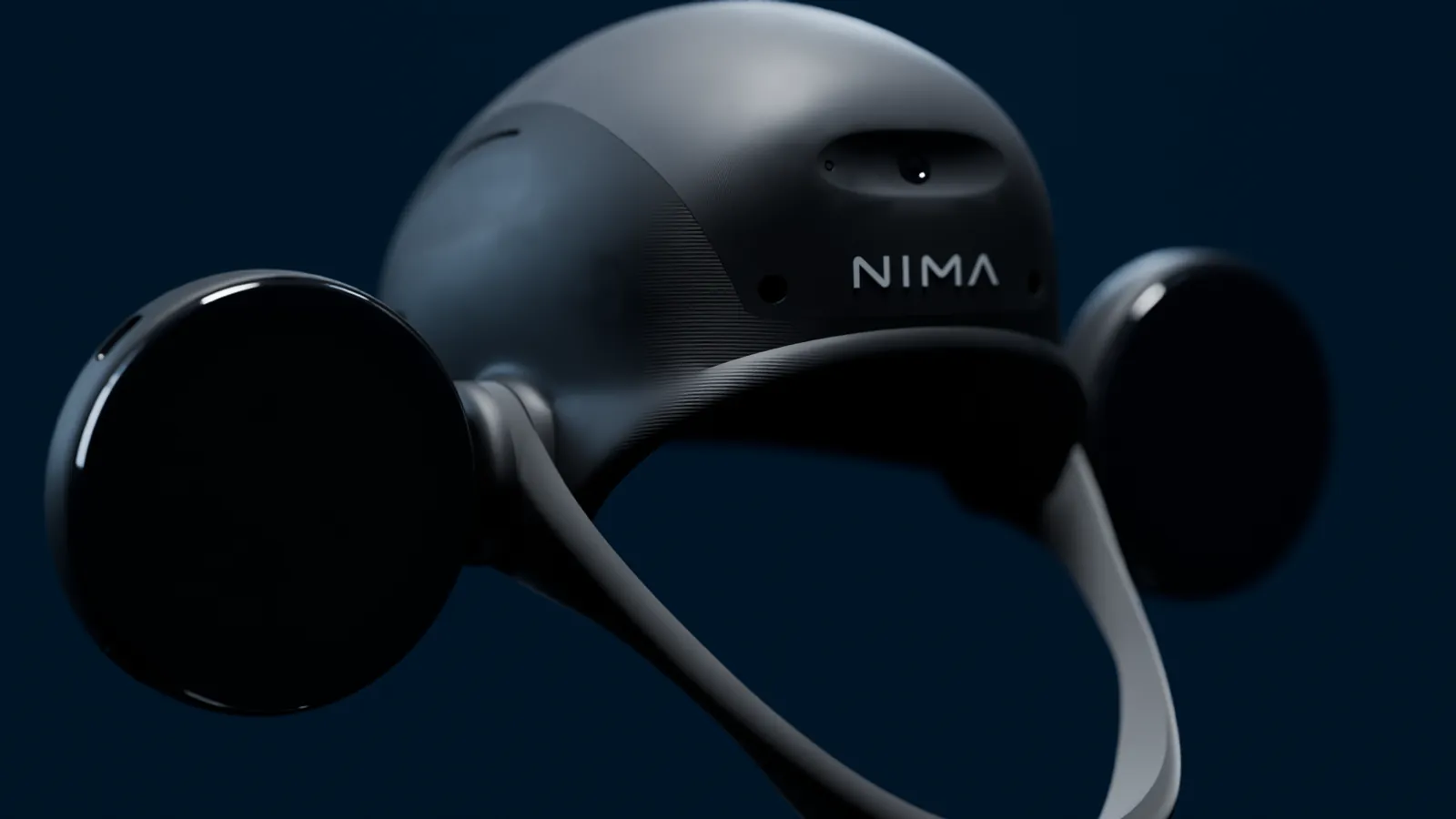

Renders of the final prototype, currently in fabrication.Renders del prototipo final, ahora en fabricación.
